Tehtnica PSA 50

Opis izdelka

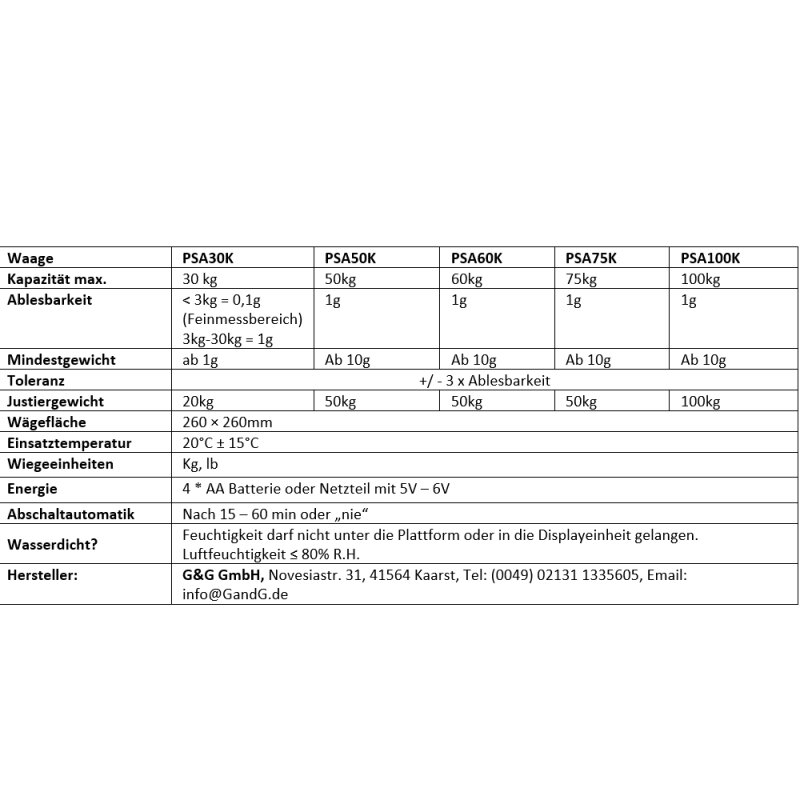

Technical data sheet:

Special feature:
Our PSA Series is perfect when you need a scale for a limited space on a workbench but still need a high measuring range.

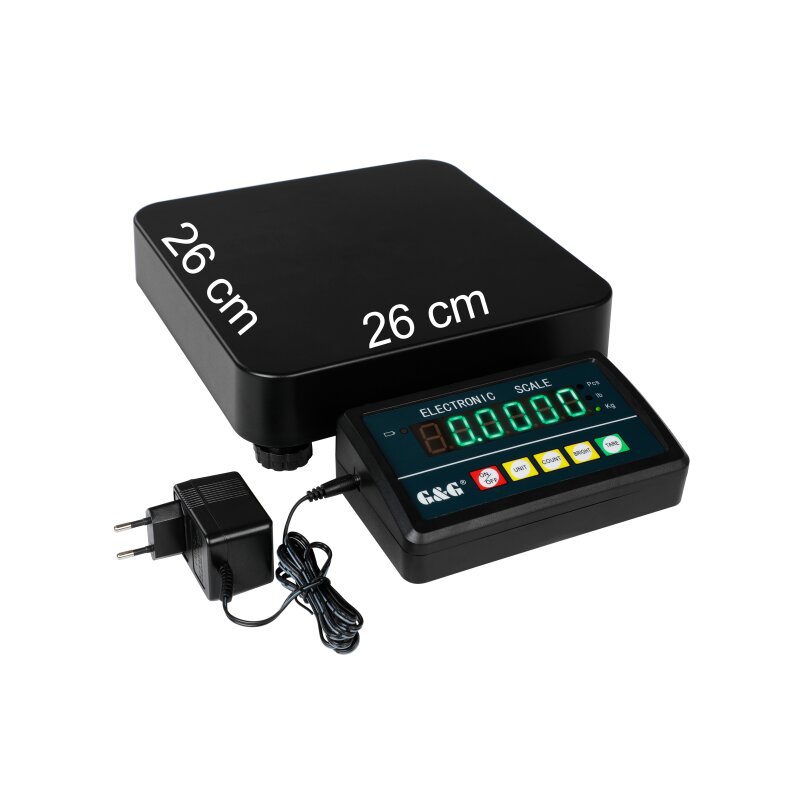

The weighing surface itself only measures 26 * 26 cm. However, the height of 9cm allows it to also weigh larger things.

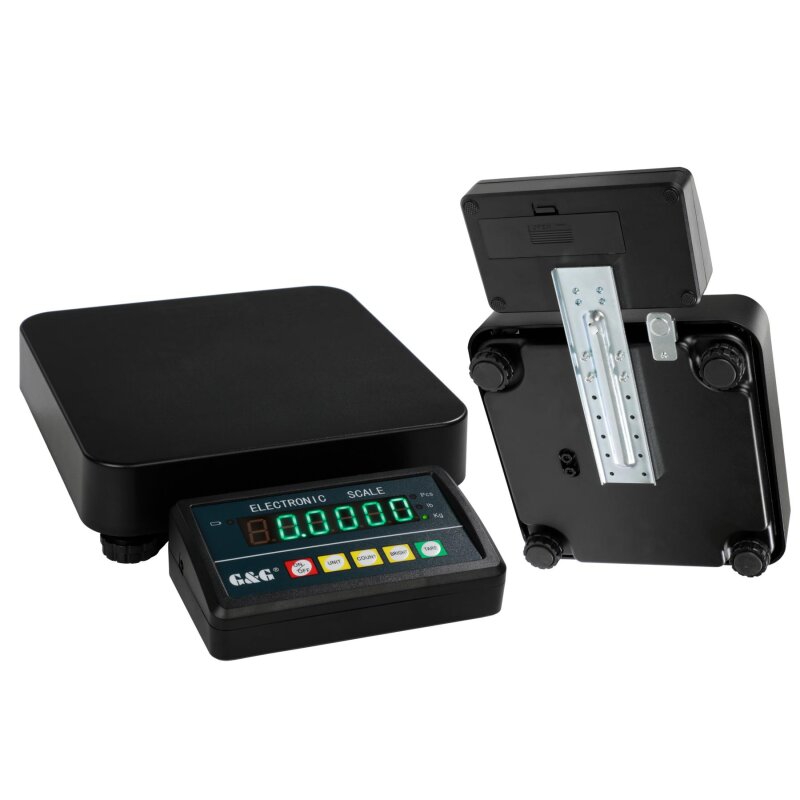

The display can be attached to the platform with a sturdy metal holder.
Note: It does not must be used and the display can also be just placed next to the scale, but we recommend it. Our experience has shown that the most damages that we fix in our workshop at any of our plateframe scales are damages at the display when it is accidentally thrown off the table or a damaged cable connection by ripping it off.

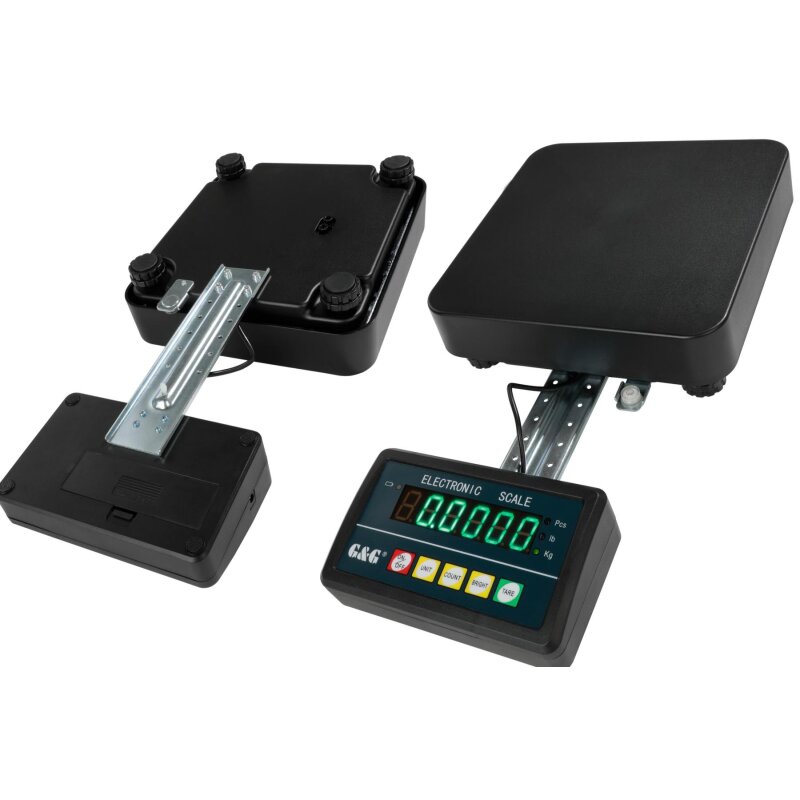

The position can be fixed in 6 different positions depending on your needs and space.
Either very close to the housing like here:

Or, if you have larger items and boxes in your range, far from it.

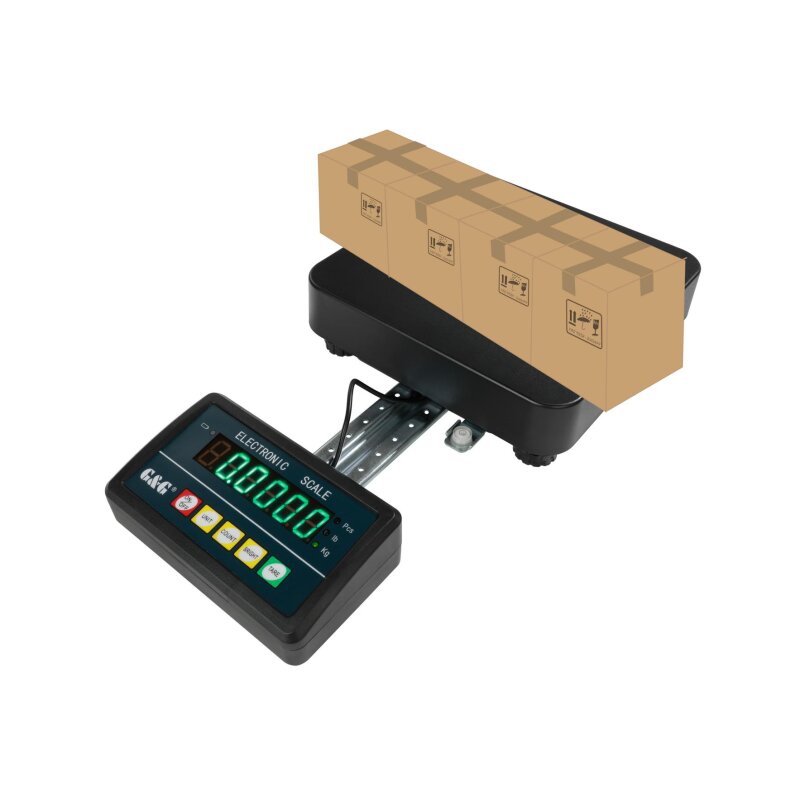

On the rearmost level of the scale, boxes with a depth of up to 60cm can easily be weighed without the display being covered:

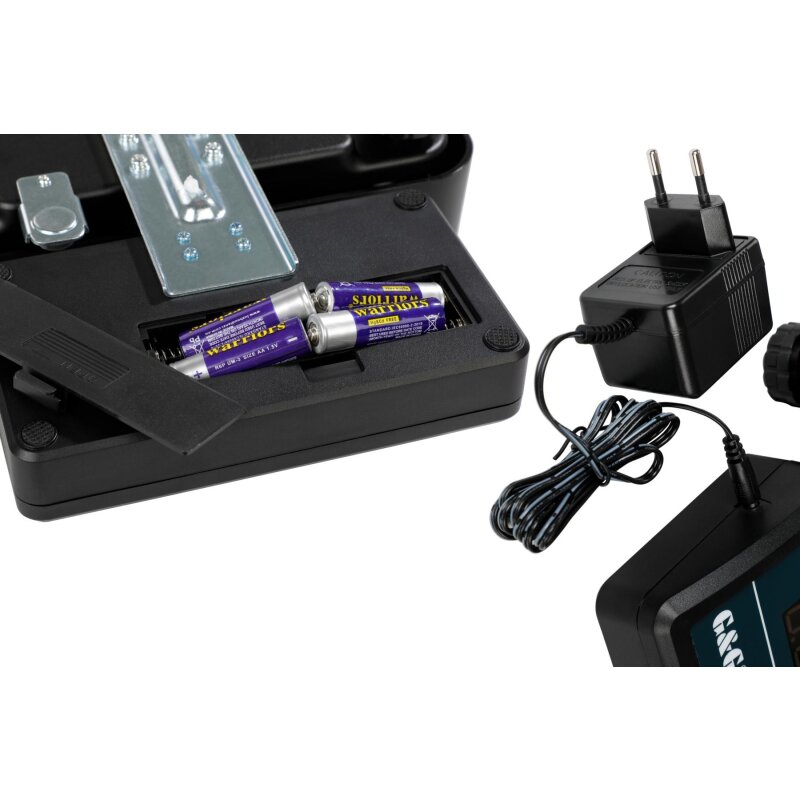

Power supply:

Stationary:
The scope of delivery includes a 6V power supply for permanent power supply. You can plug it in on the left side of the display. This is the recommendet energy source if you completely deactivate the energy supply.

Mobile use:
4 * 1.5V AA batteries. Lifespan approx. 20-30 operating hours, depending on the display brightness setting.
The scale can also be operated with rechargeable batteries, but the operating time is significantly reduced with batteries with only 1.2V.

Alignment and Installation:

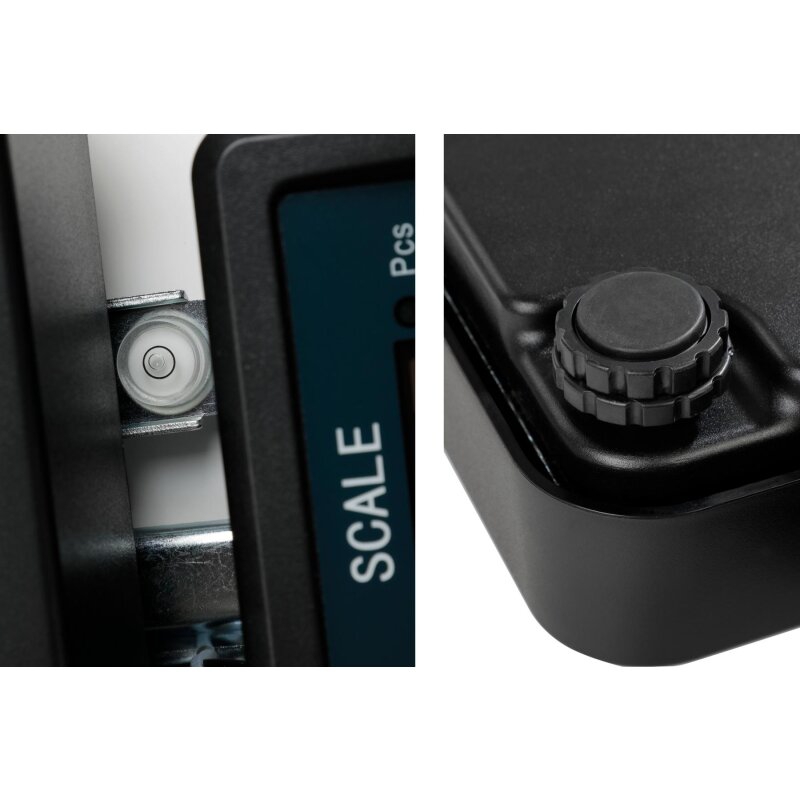

The scale has a built-in spirit level on the platform.
This allows the scales to be aligned on any table using the four height-adjustable feet. Those can then be locked at the desired height.
And: Of course the feet are equipped with anti-slip rubbers.

Technical data sheet:
